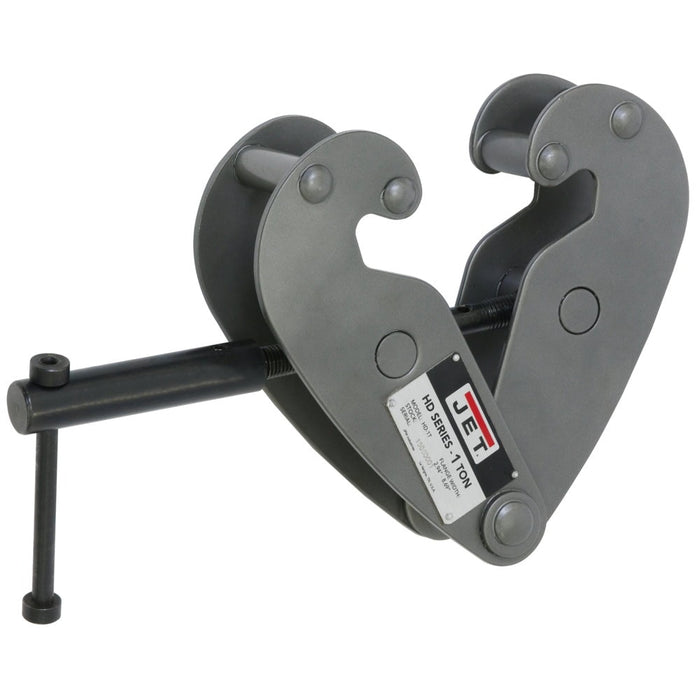

Jet JT9-202710 1-Ton Load Capacity I-Beam Clamp

Jet JT9-202710 1-Ton Load Capacity I-Beam Clamp

Availability:
Out of stock
Sold out
$130.00
$130.00 - $130.00
$130.00
$85.99
$85.99 - $85.99
$85.99

Product Description

Jet 202710 Description

JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.

Jet 202710 Features

  • Durability
  • Welded all-steel frame and powder coat finish provide maximum durability and protection
  • Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
  • Used for quick mounting of a hoist or for lifting a broad range of beams up to 12-3/5 inches wide for increased versatility
  • Standards
  • Complies with ANSI / ASME B30.17 and B30.20 standards
  • Certification- Load tested to 125% of capacity with certificate

Jet 202710 Specifications

Load Capacity (Metric Tons) 1
Capacity (Lbs.) 2,200
Weight (Lbs.) 10
Maximum Beam Flange Width (In.) 8-2/3
Minimum Beam Flange Width (In.) 3
Load Capacity (Tons) 1
