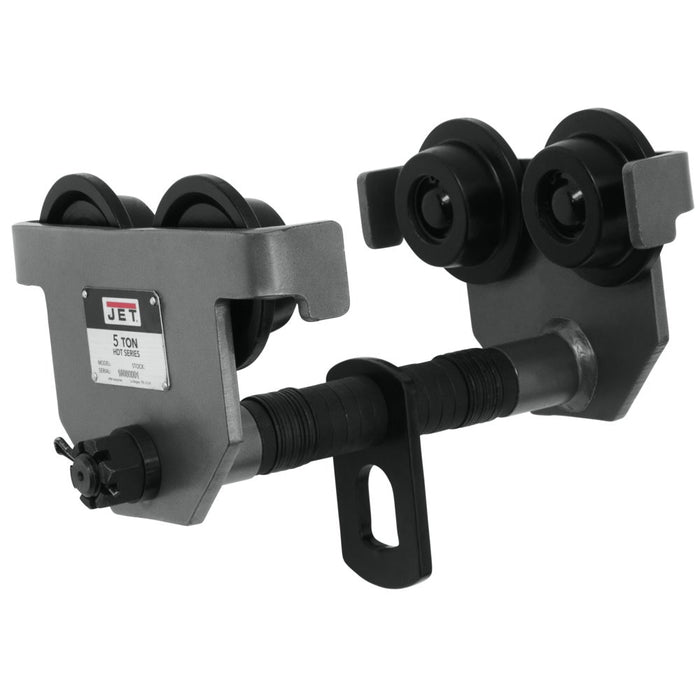

Jet JT9-262050 5-HDT, 5-Ton Manual Trolley

Jet JT9-262050 5-HDT, 5-Ton Manual Trolley

Availability:
Out of stock
Sold out
$960.00
$960.00 - $960.00
$960.00
$617.10
$617.10 - $617.10
$617.10

Product Description

Jet 262050 Description

JET® HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards

Jet 262050 Features

  • Durability
  • Welded all-steel frame and powder coat finish provide maximum durability and protection
  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
  • Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
  • Standards
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Certification- Load tested to 125% of capacity with certificate

Jet 262050 Specifications

Minimum Beam Flange Width (In.) 4-5/8 - 8
Minimum Beam Heighth (In.) 10
Load Capacity (Tons) 5
Capacity (Lbs.) 11,000
Minimum Beam Curve Radius (In.) 55
