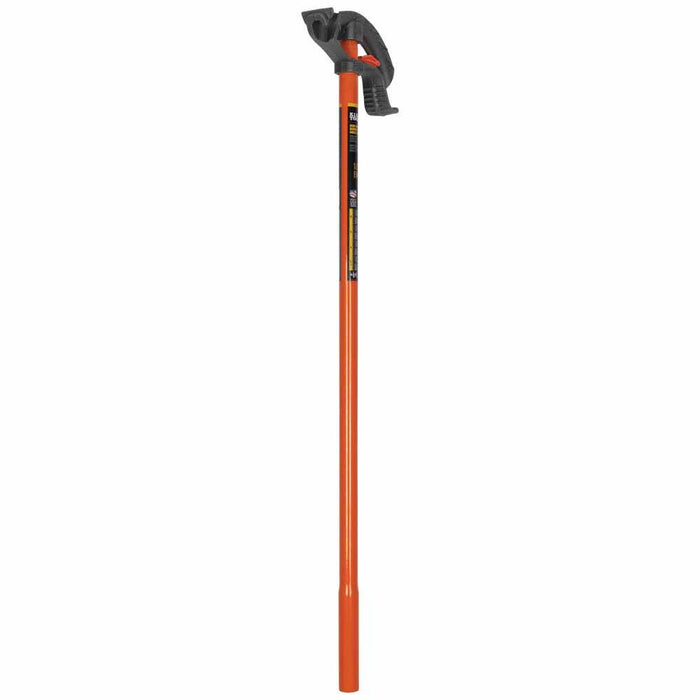

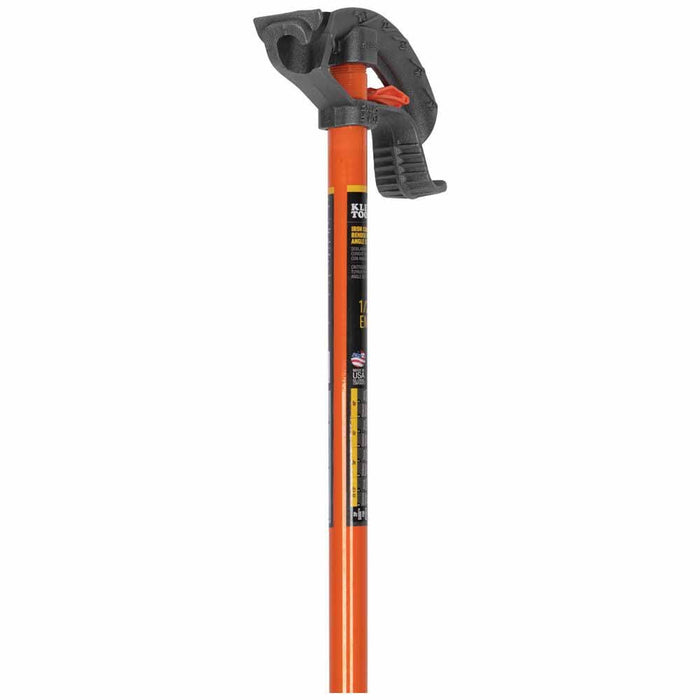

Klein 51604 Iron Conduit Bender 3/4" EMT with Angle Setter

Product Description

INCLUDES:

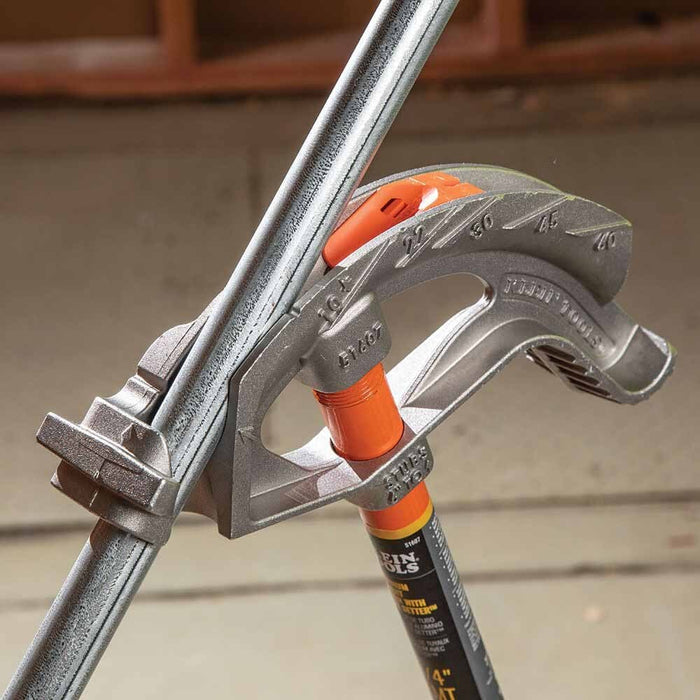

• Klein Tools’ conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
• (1) Conduit Bender

FEATURES:
• 3/4-Inch assembled Iron Bender includes Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)

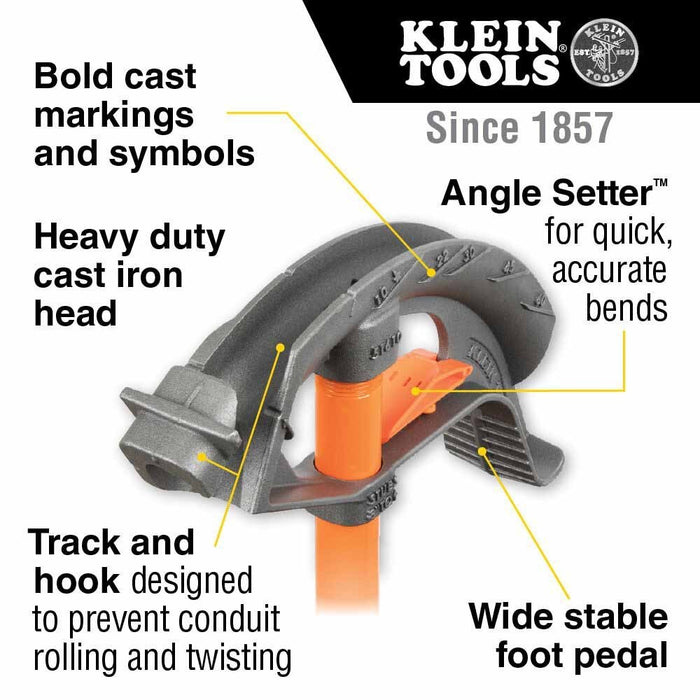

• Heavy duty cast ductile iron has the durability needed on the job site

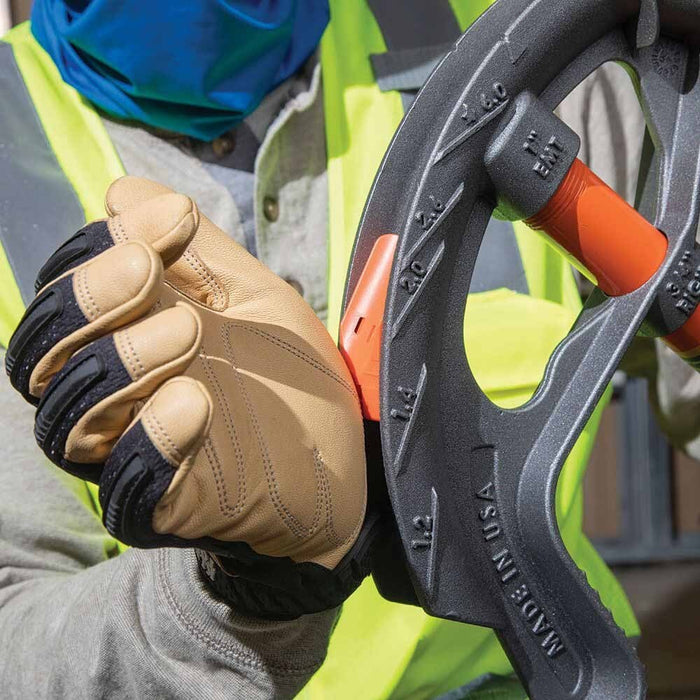

• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
• Wide foot pedal provides excellent stability, leverage, and comfort
• Interior hook surface prevents conduit from rolling or twisting during bends
• Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

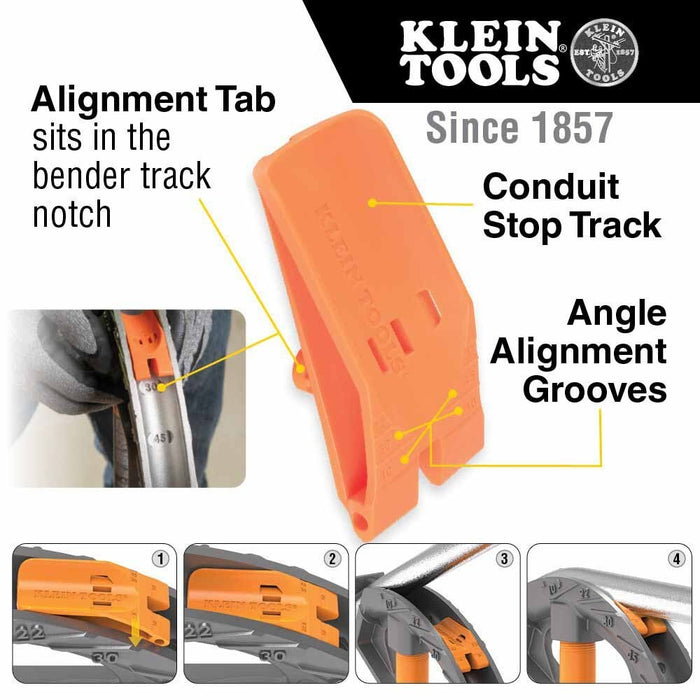

• Features Klein’s 3/4-Inch Angle Setter™ (Cat. No. 51612) that creates a hard stop for quick, accurate, and consistent bends
• Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit

SPECIFICATIONS:
• Overall Length: 1.9"
• Overall Height: 44.1"
• Overall Width: 9.8"
• Handle Length: 38"
• Thinwall/EMT: 3/4"
• Rigid/IMC: 1/2"
• Conduit Size: 3/4"
• Centerline Bend Radius: 5''- Stub-up Height 6'', Centerline Radius 5-1/2''
• Marking: 10°, 22°, 30°, 45°, 60°
• Material: Iron
• Conduit Type: EMT
• Special Features: Patent Pending Angle Setter™ Technology
• Country of Origin: USA
