Product Description
Makita SK105GDNAX Description
Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT® Lithium-Ion self-leveling cross-line green beam laser (SK105GDNAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines required for level, align, and plumb applications. Depending on ambient light in the working environment, the SK105GDNAX has a line visibility range up to 115 Ft. and is detectable up to 262 Ft. with a Makita laser detector (sold separately). The SK105GDNAX has a bright 525 nm class II green laser with +/- 1/8 In. at 33 Ft. for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. For longer run time, all 12V max CXT® cordless tools are also compatible with the 12V max CXT® Lithium-Ion 4.0 Ah battery (BL1041B). 12V max CXT® Lithium-Ion batteries are engineered with a battery protection circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size.

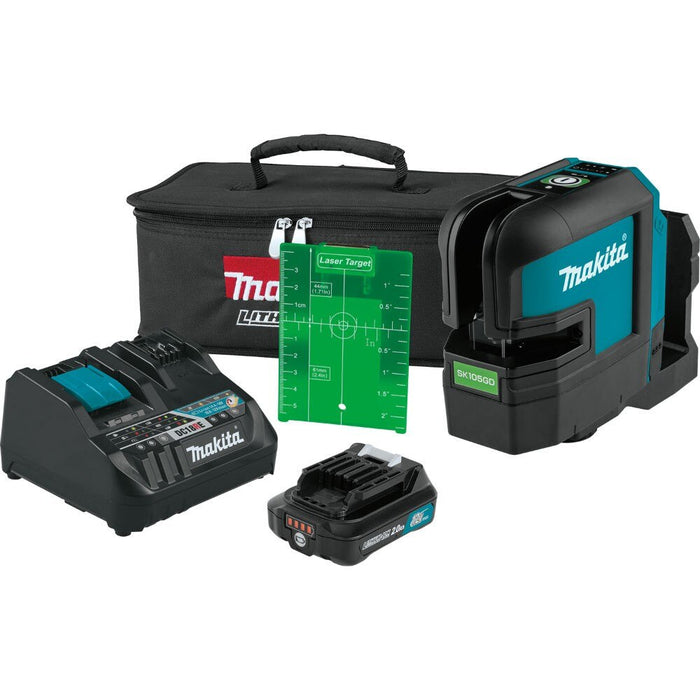

Makita SK105GDNAX Includes
- (1) 12V max CXT® Self-Leveling Cross-Line Green Beam Laser (SK105GDZ)
- (1) 12V max CXT® Lithium-Ion 2.0Ah Battery (BL1021B)
- (1) 18V LXT® / 12V max CXT® Lithium-Ion Rapid Optimum Charger (DC18RE)
- (1) Magnetic L-Adapter (LE00870131)
- (1) Magnetic Green Target Plate (LE00823195)
- (1) Laser Kit Bag (832173-9)
Makita SK105GDNAX Features
- Selectable horizontal/vertical cross reference lines required for level, align and plumb applications
- 12V max CXT™ battery delivers the convenience of a rechargeable tool battery and up to 20 hours of continuous run time
- Green line visibility range up to 115 Ft. depending on ambient light and detectable up to 262 Ft. with Makita laser detector
- Bright 525 nm class II green laser for best-in-class visibility with +/-1/8” at 33’ for best-in-class accuracy
- Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Dust and water resistance with IP 54 rating for increased durability
- Highly protected laser windows are recessed into the housing for increased durability
- Rubberized housing over-mold for increased protection
Makita SK105GDNAX Specifications
Battery | 12V max CXT® Lithium-Ion |
Line accuracy (at 33') | +/- 1/8" |
Line beam direction | 2 line (horizontal, vertical) |
Working range (line) | 115' |
Working Range with Detector | 262' |
Operating time (hours) | 10 |
Laser diode | Class II, 510-530 nm |
Levelling range | 4° |
Debris resistance | IP54 rating (dust & water resistance) |
Auto shut off | No |
Net Weight | 1.9 lbs. |
Shipping Weight | 6.7 lbs. |
UPC Code | 088381-878180 |
