PLS 5195840 PLS 180R RBP Kit, Cross Line Red Laser Kit w/ Rechargeable Battery

PLS 5195840 PLS 180R RBP Kit, Cross Line Red Laser Kit w/ Rechargeable Battery

Availability:
Only 1 left!
$536.04
$536.04 - $536.04
$536.04
$536.04
$536.04 - $536.04
$536.04
 More payment options

Product Description

Pacific Laser Systems 5195840 Description

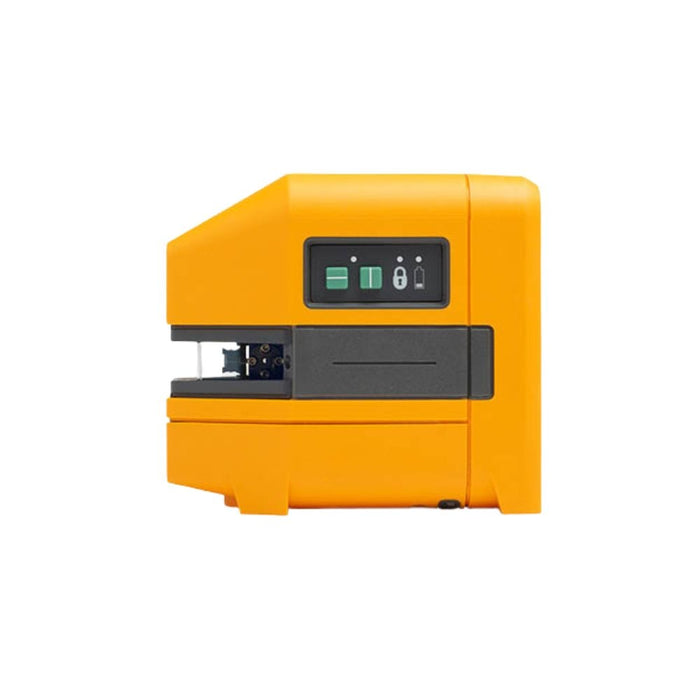

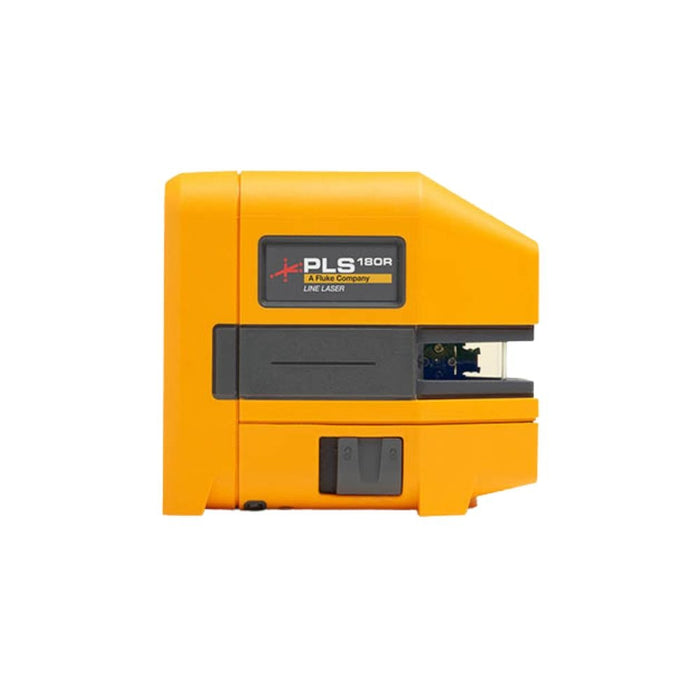

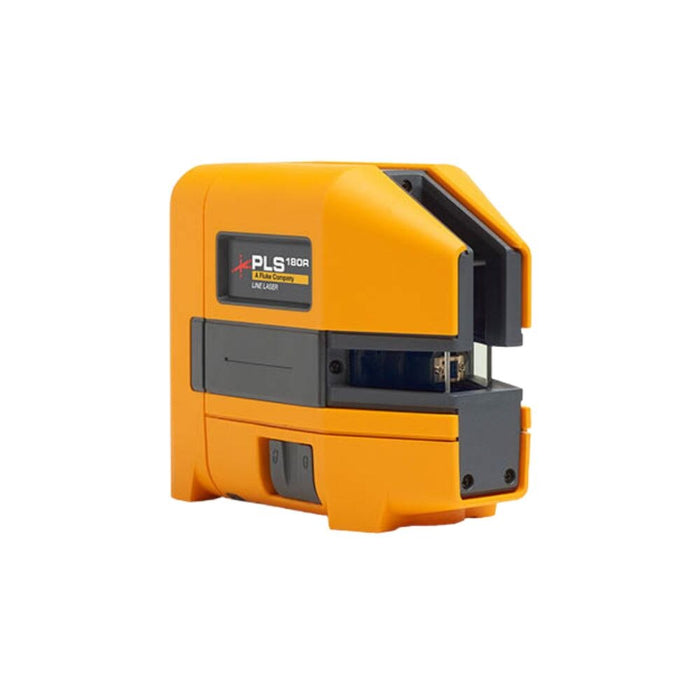

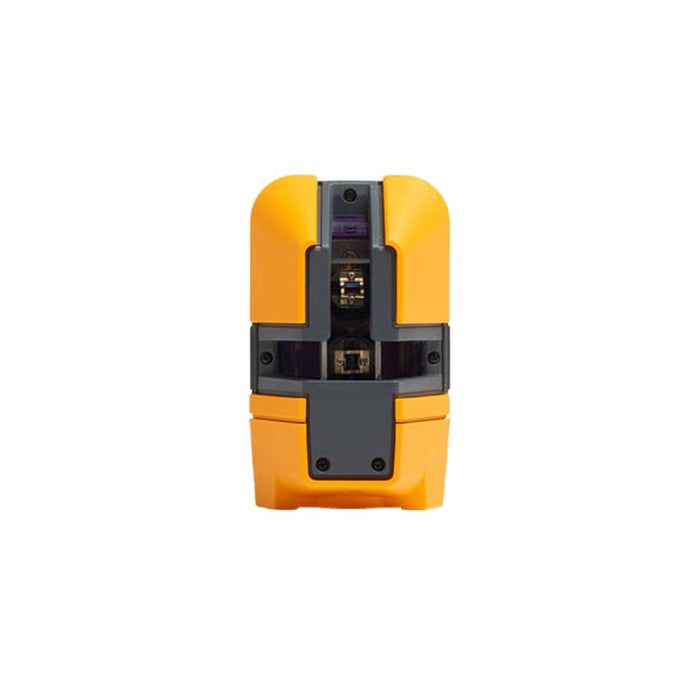

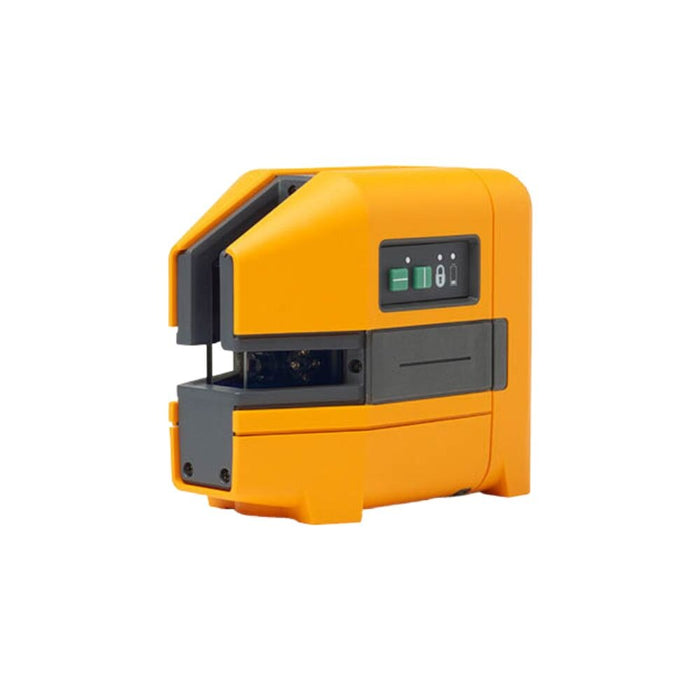

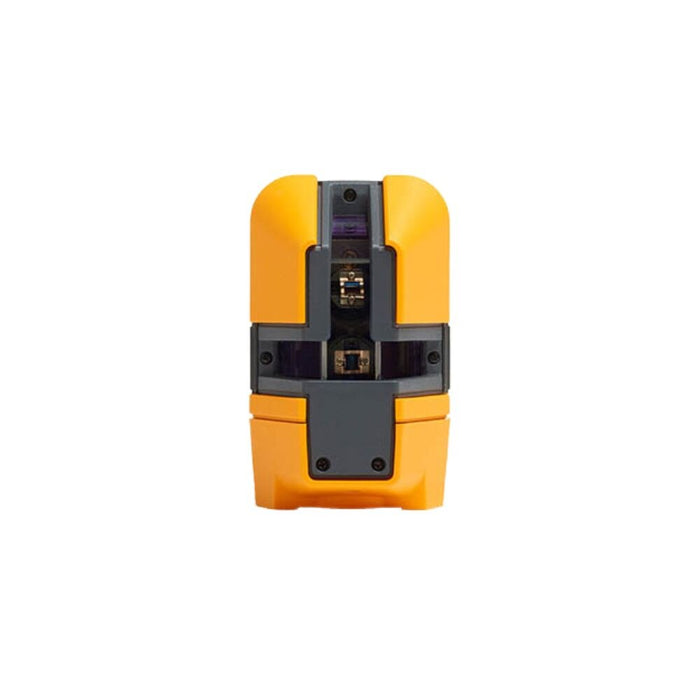

The PLS 180R Kit is a red cross line laser level for level and perpendicular alignment packaged in the C18 Laser Level Toolbox.

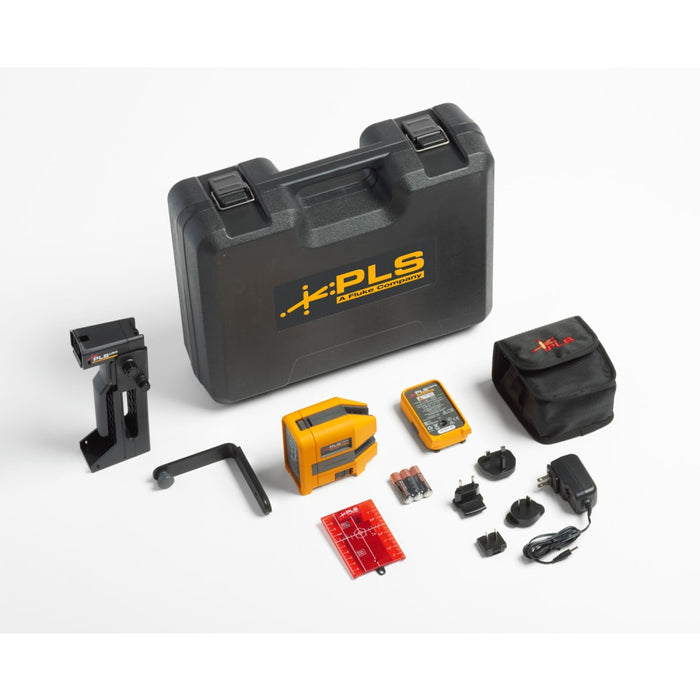

Pacific Laser Systems 5195840 Includes

  • (1) PLS 180R Laser level
  • (1) PLS-60573 Canvas pouch

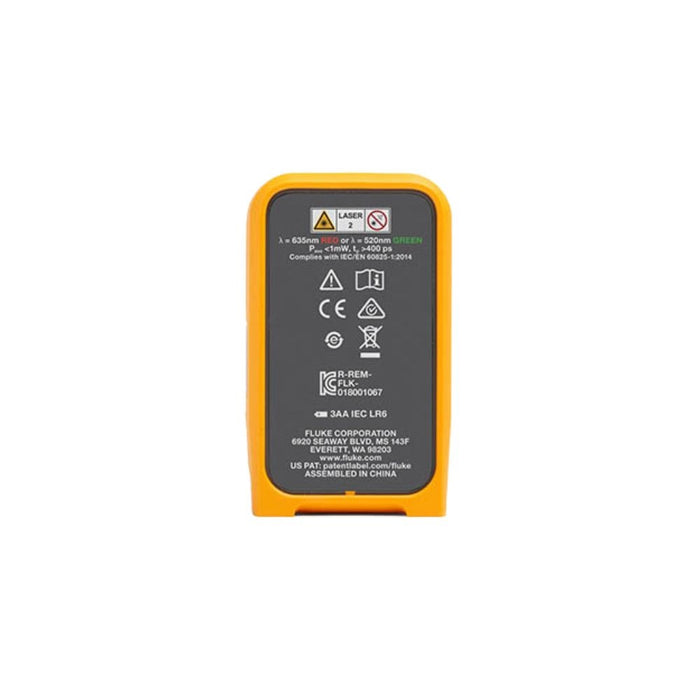

  • (3) PLS BP5 Alkaline battery pack with AA batteries

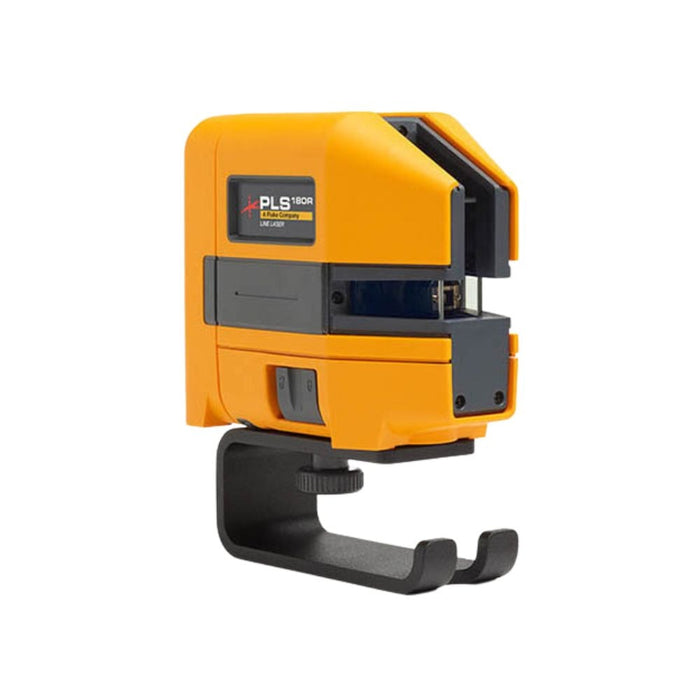

  • (1) PLS MLB Magnetic Wall Bracket
  • (1) PLS RRT4 Red Reflective Target
  • (1) PLS UB9 Universal Ceiling and Wall Bracket
  • (1) C18 Carrying Case
  • (1) PLS FS Floor Stand
  • (1) Quick Reference Guide
  • (1) Safety Documentation
  • (1) Li-ion Battery
  • (1) Charging Cord
  • (6) Adapters

Pacific Laser Systems 5195840 Features

  • Red Cross Line Laser Level
  • Class II Red Laser
  • Self-leveling within ±4 degrees
  • Pendulum Lock
  • UB9 Universal Ceiling Mount



Specifications
Battery RBP5 Rechargeable Battery Pack
Battery Life, Continuous Use 30 hours (with RBP5 Battery Pack)

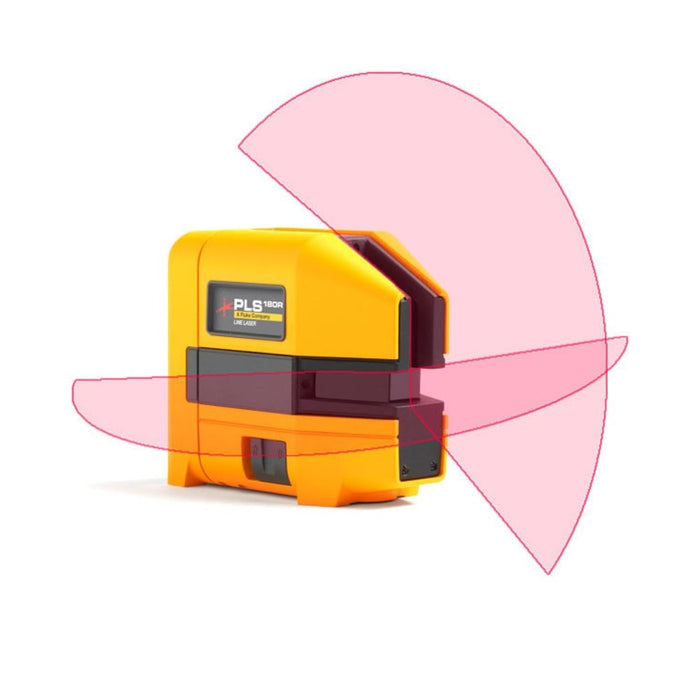

Line Fan Angle
     Horizontal = 180°
     Vertical = 130°
Working Range
     Point Laser (6 only) =30 m (100 ft.)
Line Laser
     Without SLD =15 m (50 ft.)
     With SLD 6 m to 60 m (20 ft. to 200 ft.)
Accuracy =3 mm @ 10 m (=1/8 in at 30 ft.)
Laser Leveling
     System Automatic, Pendulum
     Range 4°
Line Laser Width =2 mm at 5 m
Temperature
     Operating -10 °C to 50 °C (14 °F to 122 °F)
Storage
     With Batteries -18 °C to 50 °C (-0.4 °F to 122 °F)
     Without Batteries -20 °C to 70 °C (-13 °F to 158 °F)
Relative Humidity 0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
Size (H x W x L) 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
Weight ~ 0.6 kg (1.3 lb.)
Safety IEC 61010-1: Pollution Degree 2

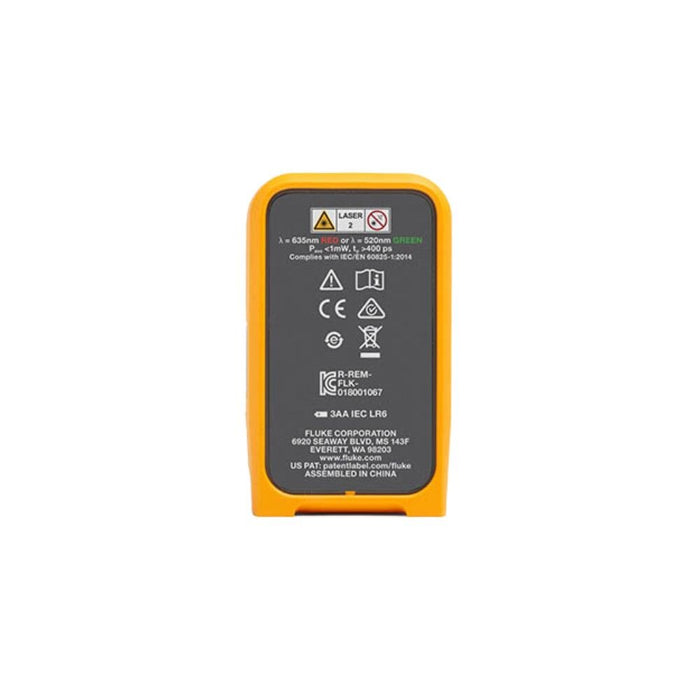

Laser IEC 60825-1:2014 Class 2
Light Source Semiconductor laser diode
Max Output Power < 1 mW
Wavelength 635 nm ± 5 nm
Electromagnetic compatibility (EMC)
     International IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
     Korea (KCC) Class B Equipment (Broadcast communications equipment for home)
     USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
