Product Description

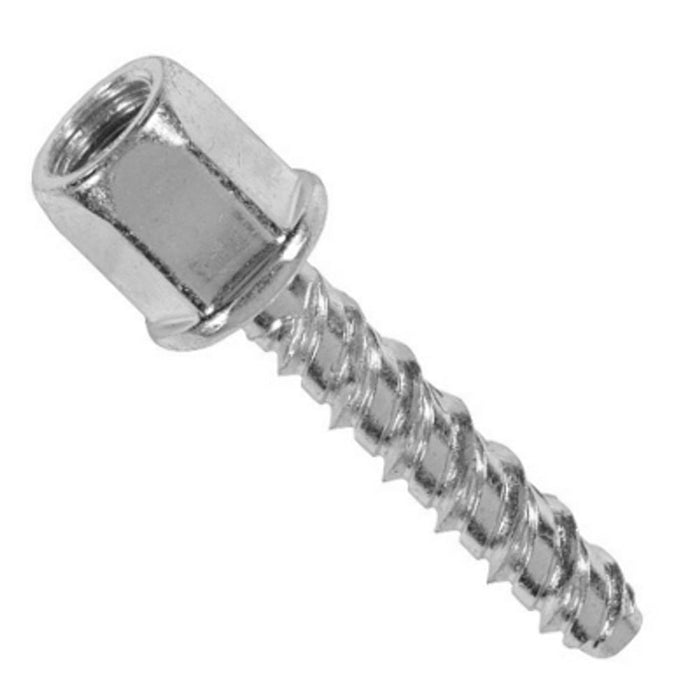

Powers Fasteners PFM2217173 Description
Hangermate is an all steel threaded fastening system for suspending steel threaded rod vertically overhead in pipe hanging, fire protection, electrical conduit and cable-tray applications. They are available in versions which can be installed in a vari ety of base materials including steel purlins, bar joists and beams, wood frame columns and beams, as well as concrete ceilings, beams and columns. Steel threaded rods in 1/4" and 3/8" diameters can be vertically suspended with Hangermate (a 1/2" diame ter size is also available for wood). They are also offered in a side mount style for lateral installation of 1/4" and 3/8" diameter steel threaded rods onto joists, columns and overhead members. For all steel and wood hangers, a Hangermate Socket Driv er is recommended to provide proper installation with a drill screw gun. For concrete hangers, a powered impact tool with a clutch is recommended. A pivot head version is also available for flexible connection angle and positioning of rod hangers. An a coustical ceiling eyelet version is also available for hanging wire or cable attachments.
Powers Fasteners PFM2217173 Includes
- (100) Rod Hanging Anchors
Powers Fasteners PFM2217173 Features
- Installs with standard 1/4-inch ANSI drill bit
- Faster installation resulting in labor savings
- Patented thread design offers low installation torque
- Tough threads for tapping high strength concrete
Powers Fasteners PFM2217173 Specifications
Rod Diameter | 3/8" |
Length | 1-1/2" |
Diameter | 1/4" |
Hang | Vertical |
Type | Rod Hanging Anchor |
Anchor Material | Carbon Steel |
Finish | Zinc |
Socket Size | 1/2" |
