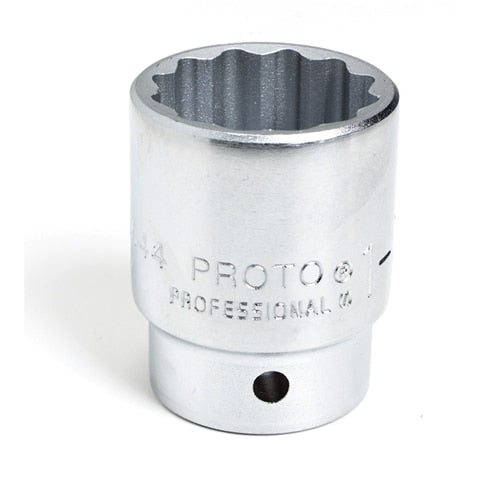

Proto J5560 3/4" Drive Socket 1-7/8" - 12 Point

Proto J5560 3/4" Drive Socket 1-7/8" - 12 Point

Availability:
Out of stock
Sold out
$85.35
$85.35 - $85.35
$85.35
$42.34
$42.34 - $42.34
$42.34

Product Description

Proto J5560 Includes

  • (1) 3/4" DRIVE SOCKET 1-7/8" - 12 POINT

Proto J5560 Features

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
  • Ball detent design.
  • Made of heat-treated alloy steel.
  • Side locking hole.

Proto J5560 Specifications

SIZE 1-7/8"
NUT END OUTSIDE DIAMETER 2-9/16"
DRIVE END OUTSIDE DIAMETER 1-3/4"
NUT DEPTH 1-19/64"
BOLT CLEARANCE DEPTH 1-39/64"
OVERALL LENGTH 2-31/32"
WEIGHT 1.55 lbs
DRIVE SIZE 3/4"
POINT SIZE 12
FINISH Satin
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS4984A
