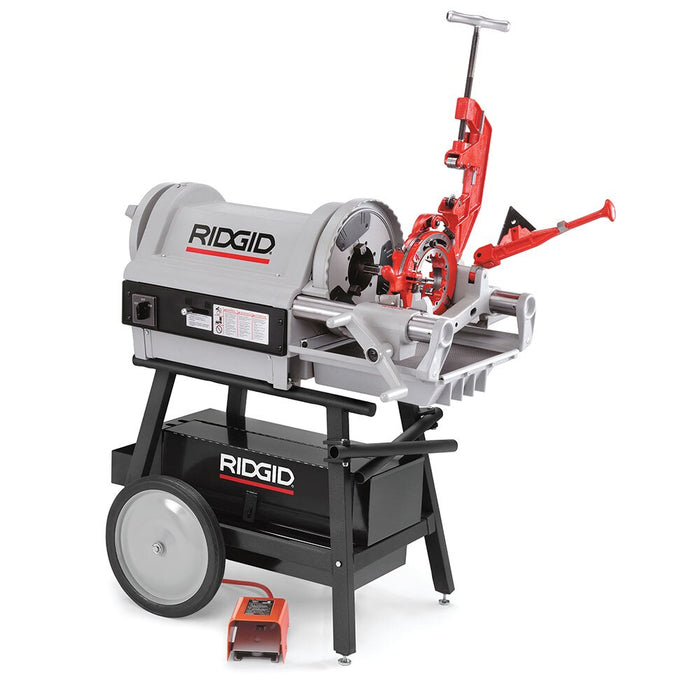

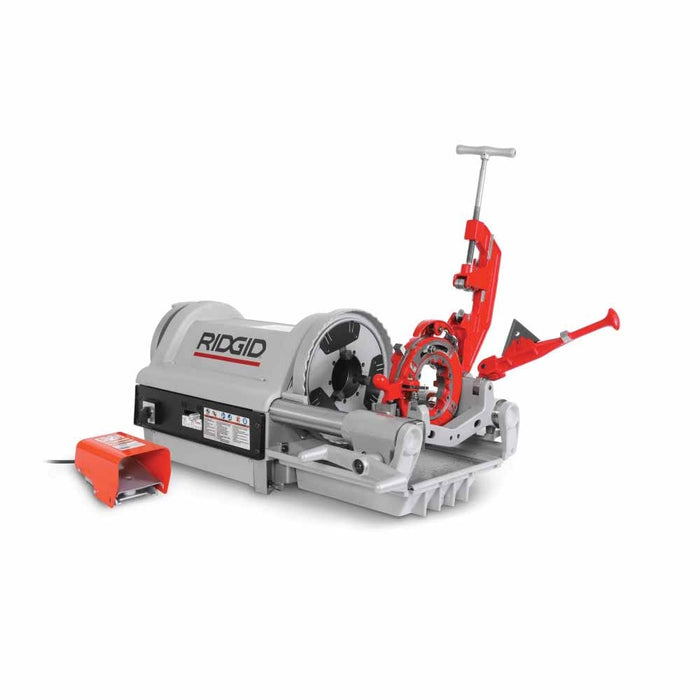

RIDGID 26097 1224 1/4" - 4" NPT Hammer Chuck Threading Machine, 240V

Name: RIDGID 26097 1224 1/4" - 4" NPT Hammer Chuck Threading Machine, 240V
Brand: Ridgid
SKU: 8643
Price: 11317.34 USD
Availability: InStock

Availability:

Only 1 left!

Sale

$13,635.35

$13,635.35 - $13,635.35

$13,635.35

$11,317.34

$11,317.34 - $11,317.34

$11,317.34

Quantity

Product Description

Ridgid 26097 Description

The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.

Ridgid 26097 Includes

(1) 1/2" - 4" NPT Hammer Chuck Machine
(1) 26132 711 SO Universal Right Hand Dies
(1) 26152 714 SO Receding Right Hand Dies
(1) 26192 Dies. 1224 2 - 1/2" - 4 NPT HS
(1) 47745 1/2" - 3/4" Universal Alloy Die Set
(1) 47750 1" - 2" Universal Alloy Die Set
(1) 26212 1/4"-4" Wheel-Type Cutter
(1) 26217 1/4"-4" Blade-Type Reamer
(1) 33125 Wheel, Cutter F229 3 & 4 HD
(1) 46030 3/16" Hex Key
(1) 46040 Key, Hex 7/32
(1) 46190 Hex Key, 1/4"
(1) 70835 Nu-Clear Thread Cutting Oil
(1) 83975 Wrench, 3/4 COMB
(1) 53693 Tool Box

Ridgid 26097 Features

Induction motor for constant speed, optimal torque & noise reduction.
12 or 36-RPM g for optimal machine peformance.
Integral through-head oiling system floods the thread lubricating the dies and clearing the chips.
Includes 1/4 - 2" inch and 2-1/2 - 4 inch Die Heads.
Mount on a workbench or RIDGID stand (sold separately).

Ridgid 26097 Specifications

Nominal Pipe Capacity	1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader
Bolt Capacity	1/4"-2" (6mm-50mm)
Motor Control	Reverse/off/forward, heavy-duty rotary-type and integral foot switch
Gear Box	Two-speed gear box with a 3
Chuck	Hammer-type with replaceable rocker-action jaw inserts
Volts	240
