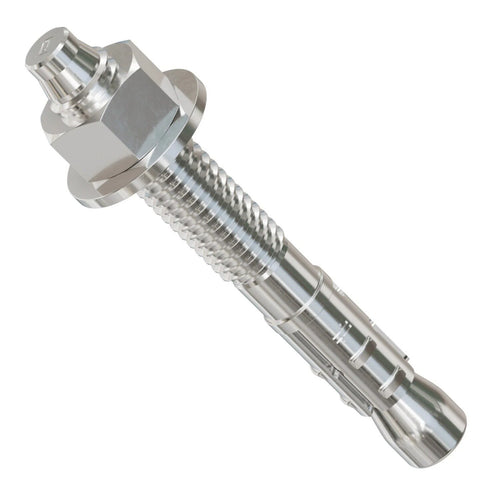

Simpson Strong-Tie STB2-373006SS Strong-Bolt (3/8" x 3") Stainless Steel 2 Wedge Anchor - Uassembled (50 Pack)

Simpson Strong-Tie STB2-373006SS Features

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical, and overhead applications
• Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-373006SS Applications

• Concrete anchoring in cracked or uncracked concrete
• Seismic and static load applications
• Horizontal, vertical, and overhead installations

Simpson Strong-Tie STB2-373006SS Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
3. Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
4. Tighten the anchor to the required installation torque.
