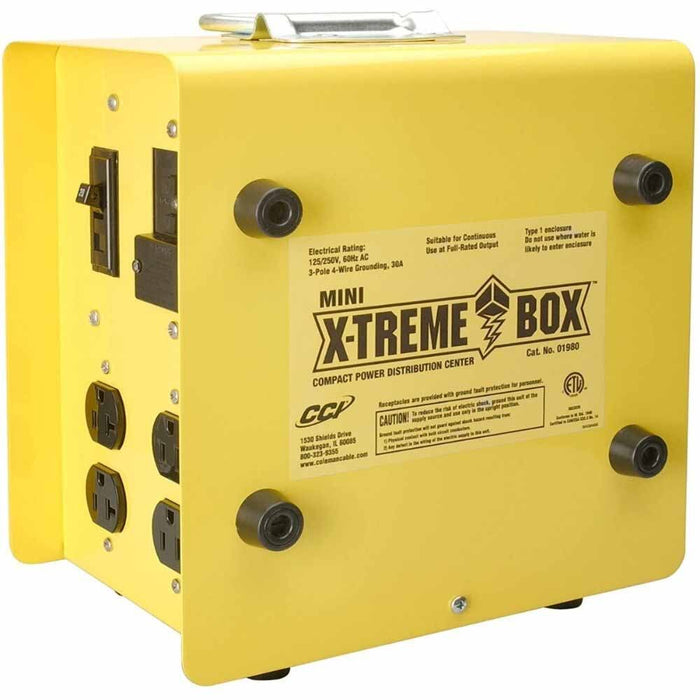

Southwire 6532UGM1 Mini X-Treme Box 30A UG Temporary Power Distribution, 8 Outlet Straight Blade
Availability:
Out of stock
Sold out
Original price
$429.81
Original price
$429.81
-
Original price
$429.81
Original price
$429.81
Current price
$257.88
$257.88
-
$257.88
Current price
$257.88
INCLUDES:
• (1) Power Distribution Box
FEATURES:
• OSHA and NEC Compliant, UL Listed, and Certified to CAN/CSA
• Ready to use out of the box
• 8 overload, circuit-breaker protected 20 amp straight blade outlets
• All outlets are GFCI protected with open neutral and over-voltage protection
• Compact size for ease of use
• May be used in vertical or horizontal positions
SPECIFICATIONS:
• Maximum Amperage: 30A
• Voltage: 125/250V
• Outlet Type: U-Ground
• Output Configuration: 5-20 U-Ground
• Power Connector: 30 Amp 125/250V 3P 4W NEMA L14-30P
• Power Specification: 125/250V 30 Amp 3P 4W
• Feed-Thru Connector: 4 x NEMA 125V 20-Amp 5-20 Duplex Receptacles with Dedicated GFCI Protection on 2 Circuit Breakers
• Outputs: 4 x NEMA 125V 20-Amp 5-20 Duplex Receptacles with Dedicated GFCI Protection on 2 Circuit Breakers
• Rating: 30A Type 1 Indoor
• Base: Mini with Feet
• GFI Specs: 4-6 Milliamp Trip Level, <25 Milliseconds Trip Time
The Mini X-Treme Box™ provides more impact and less costly work-site power distribution than our popular full size models. Used along with our restoration adapters, these units are ideal for disaster restoration work where the (more...)
