Stabila 02180 LA180L Layout Station with Auto Alignment

in stock, ready to be shipped
Original price $2,000.00 - Original price $2,000.00
Original price $2,000.00
$2,050.00 - $2,050.00
Current price $2,050.00

Product Description

• (1) LA180L Laser

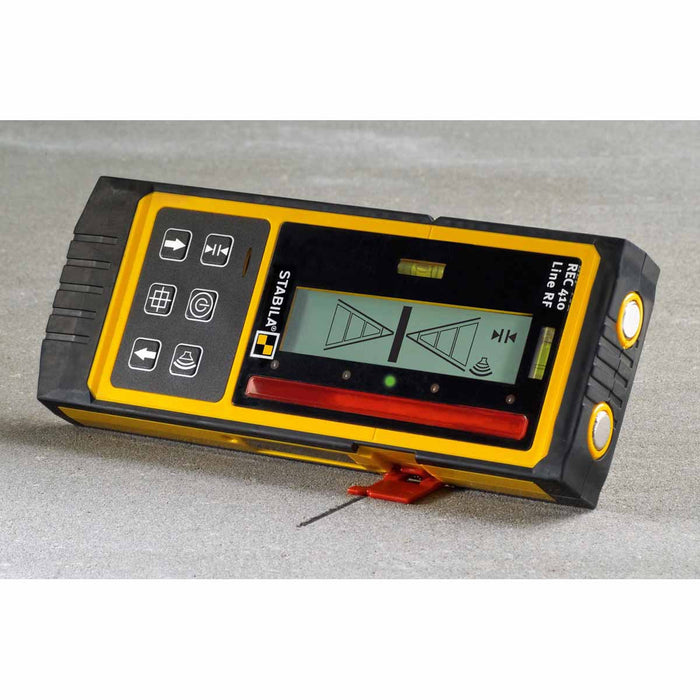

• (1) Receiver w/Bracket
• (1) Hard Shell Carrying Case
• (2) Magnetic Target Plate
• (1) Hi-Vis Laser Goggles
• (4) D Batteries

• Industry first laser "transceiver" transmits it's location to the to the laser via radio frequency, signaling the laser to automatically pivot on "Point A" to find "Point B". As soon as this connection is established, the laser locks into position and the transceiver automatically switches to receive mode, allowing you to pick it up and move it around the work site as a standard laser receiver

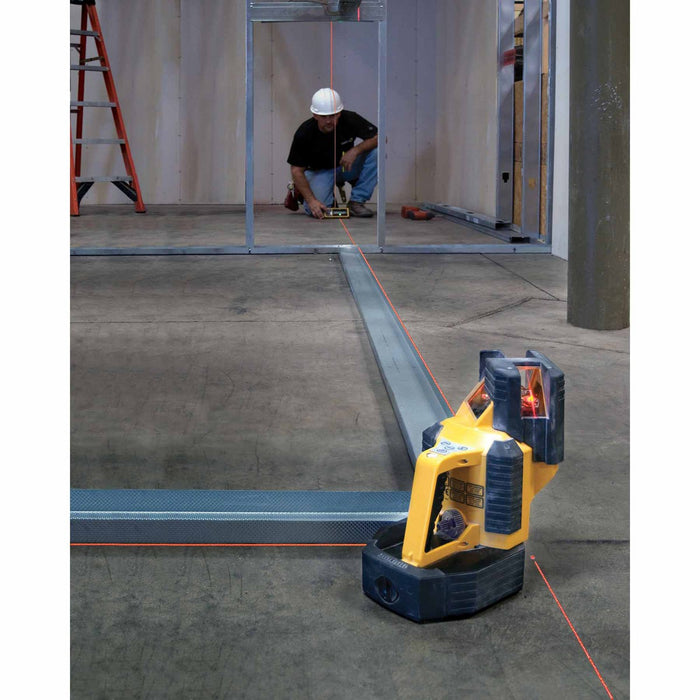

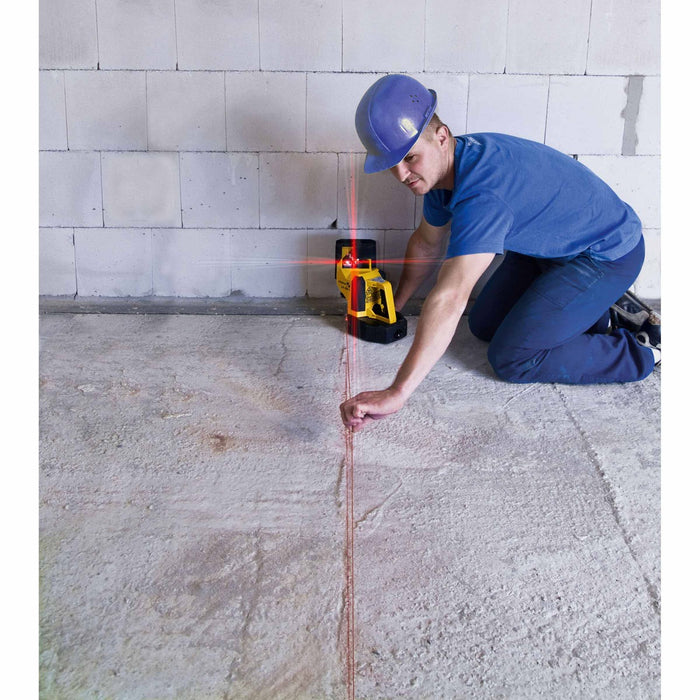

• Layout lines can be quickly established and transferred by just one person

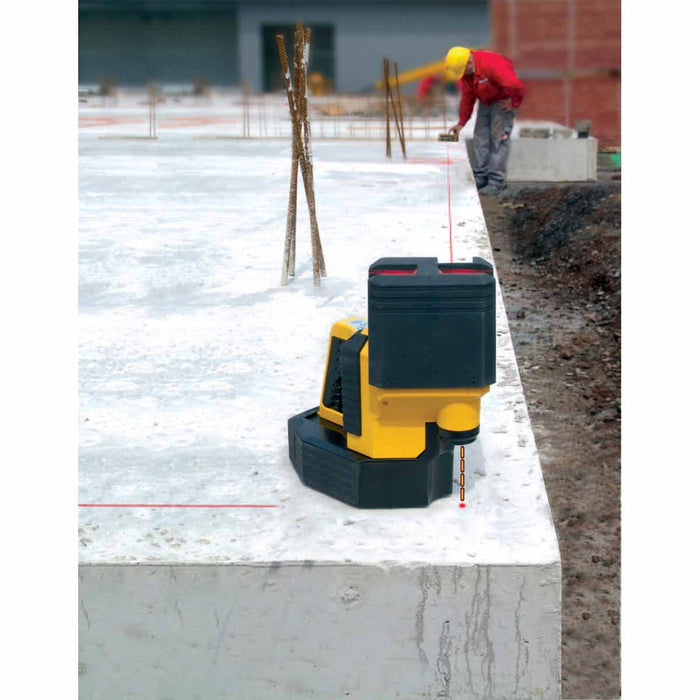

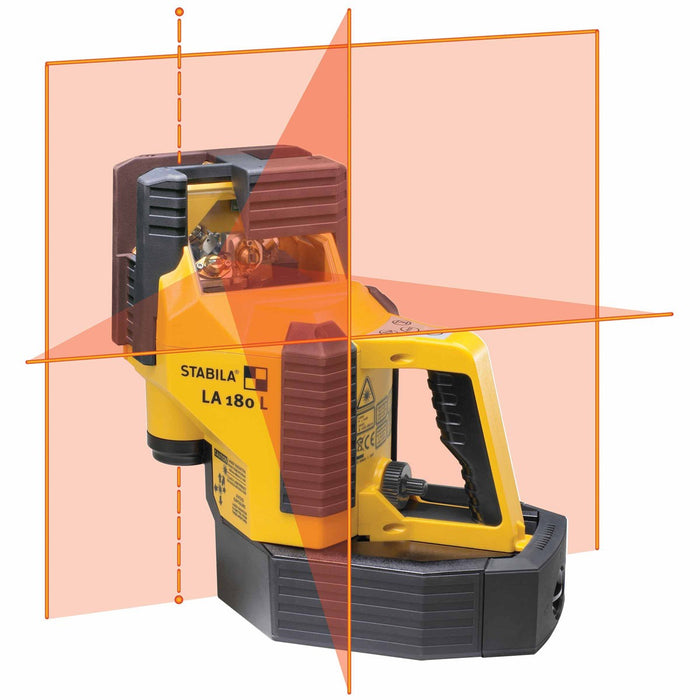

• Plumb points, horizontal beam and three adjustable perpendicular vertical beams

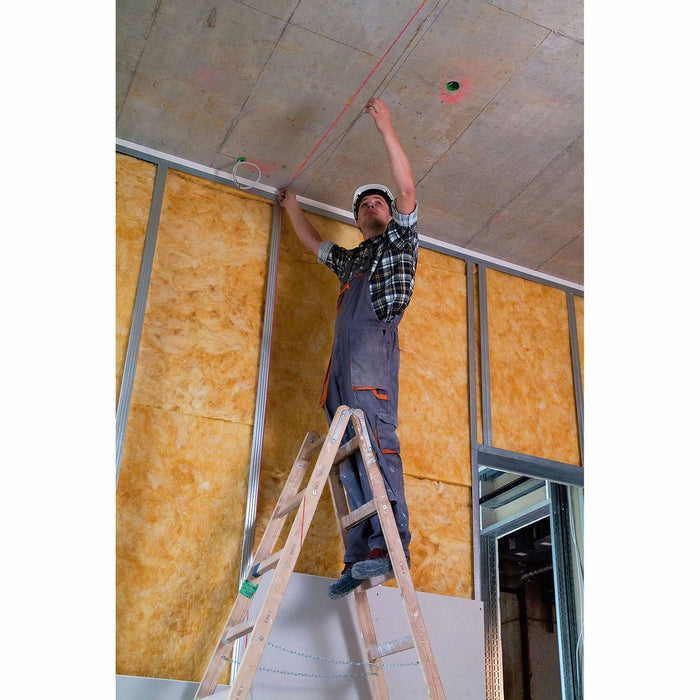

• Full plane vertical beams cover floors, walls and ceilings
• Bright, crisp lines visible to 65', or 328' with included receiver

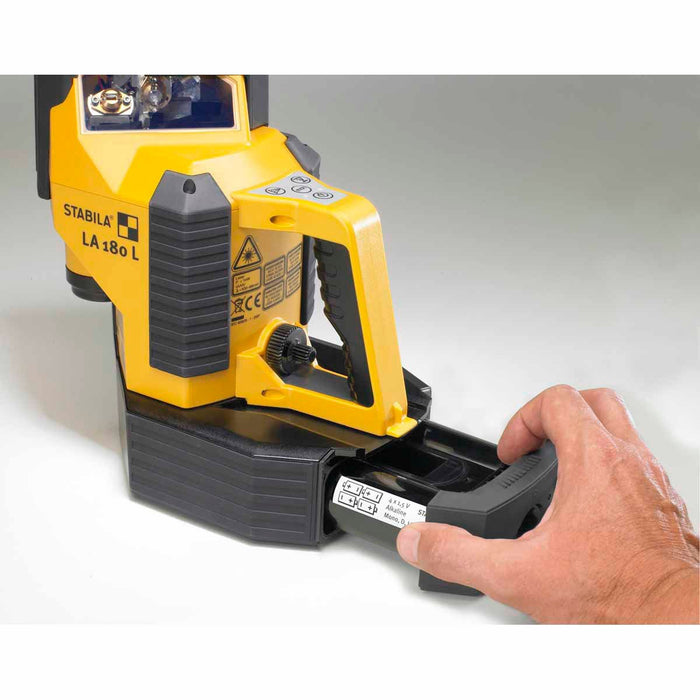

• Slide out battery drawer allows battery change without disturbing the laser's reference position
• Servo motor controlled self leveling

Self Leveling Range: ± 5°
Working Range: Visual 65'/328' with receiver
Accuracy Tolerance Level: +/- 3/32" @ 100'
Accuracy Tolerance Up/Down Beams: +/- 3/32" @ 100'
Battery Run Time: 20 Hours
Batteries: 4-D
Laser class: 2
Output: <1mW
Laser Wavelength: 635nm
Dimensions: 10.5" x 10.25" x 6"

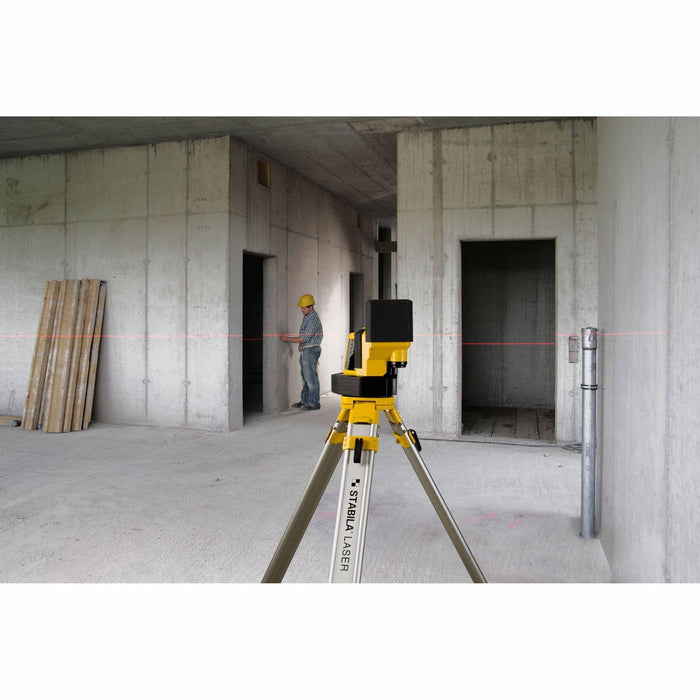

Tripod mount: 5/8" x 11

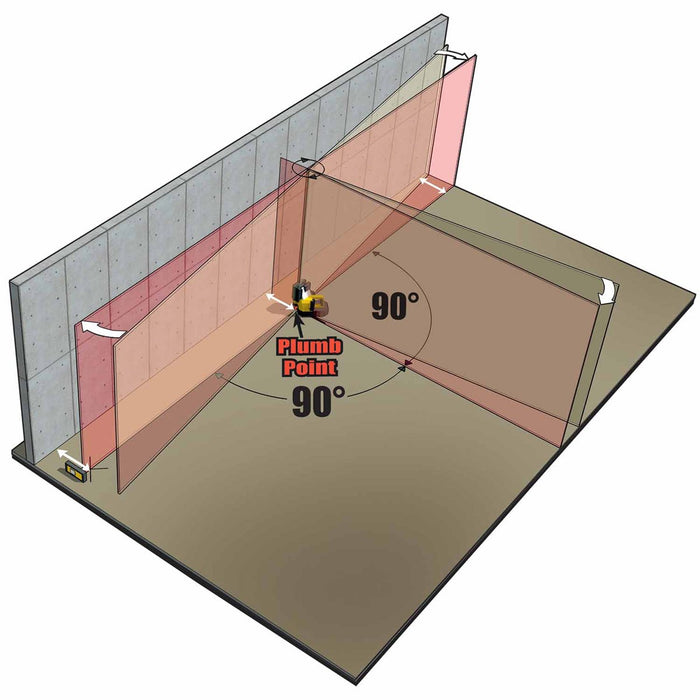

Automatic alignment layout laser with plumb points, one horizontal, and three vertical lines at 90 degrees
