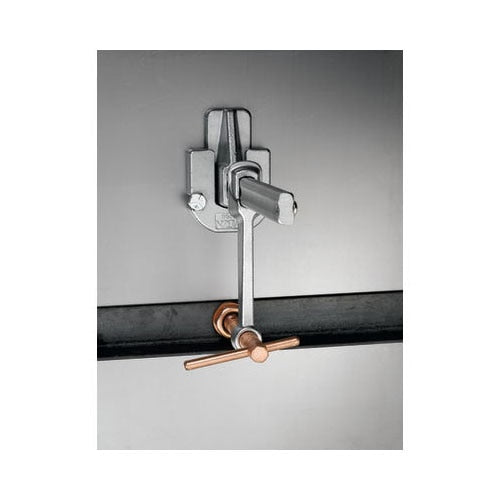

Wilton WL9-63295 Welding Shoe Clamp 8 1/2" Jaw Opening, 5 1/2" Throat Depth

Wilton WL9-63295 Welding Shoe Clamp 8 1/2" Jaw Opening, 5 1/2" Throat Depth

Availability:
Out of stock
Sold out
$180.00
$180.00 - $180.00
$180.00
$98.47
$98.47 - $98.47
$98.47

Product Description

Wilton 63295 Includes

  • (1) Welding Shoe Clamp 8 1/2" Jaw Opening, 5 1/2" Throat Depth

Wilton 63295 Features

  • Flexible design reduces number of Clamps needed, set up time and storage space
  • Reaches where conventional Clamps cannot , can be located anywhere on a fixture, table or fabricated piece
  • Direct clamp mounting-quicker and easier for aligning and leveling plates and sheets
  • Easy loading and unloading-Clamps slides easily in and out of shoe
  • Bolt or weld on shoe-shoe can stay in place while Clamps are used in other set-ups
  • Puts clamping power where you need it

Wilton 63295 Specifications

Height 1.97"
Length 12.6"
Gross Weight 8.25 lbs
Net Weight 8.25 lbs
Width 10.03"
Spindle Diameter 3/4"
Nom. Rail Size 1-3/16" x 9/16"
Throat Depth 5-1/2"
Opening Capacity Max 5-1/2"
Clamping Force 2600 lbs
